Harvey Tool

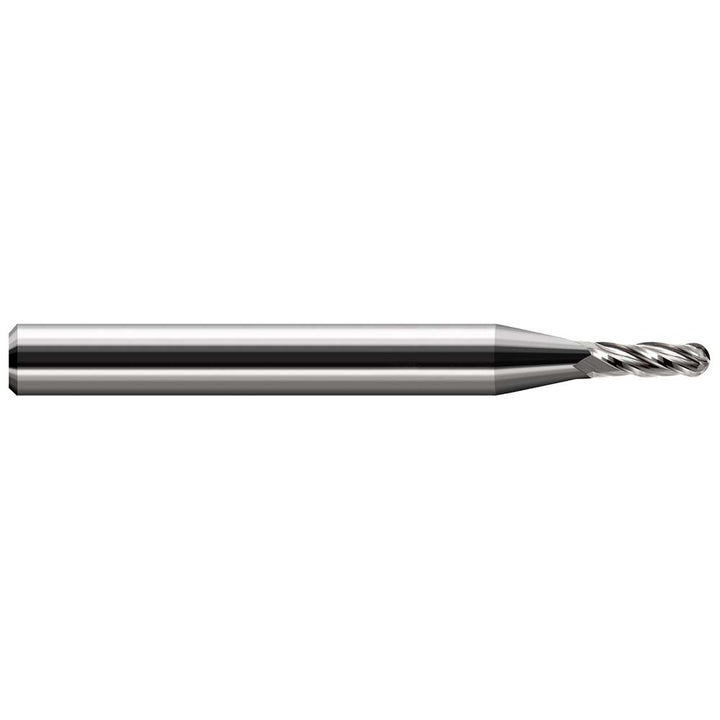

0.1" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 836000

Name: 0.1" 3-Flute Solid Carbide Ball End Mill - Harvey Tool 836000
Brand: Harvey Tool
SKU: 836000
Price: 31.94 USD
Availability: InStock

MFR# 836000Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills

$31.94List $36.63 Save 12%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Harvey Tool 836000 is a 0.1 3-flute Solid Carbide (Carbide) ball end mill. Suited for steel, stainless steel, cast iron, non-ferrous metal. 1-1/2 overall length. Series Miniature End Mills - Ball - Stub & Standard, Miniature End Mills.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length typeStandard

Manufacturers catalog number836000

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter0.1

Mill diameter tolerance+0.0005/-0.0005 in

Nose radius0.0500

Number of flutes3

Overall length in1-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal

Reach length0.3000

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementDecimal Inch

Variable helixNo

Variable indexNo
