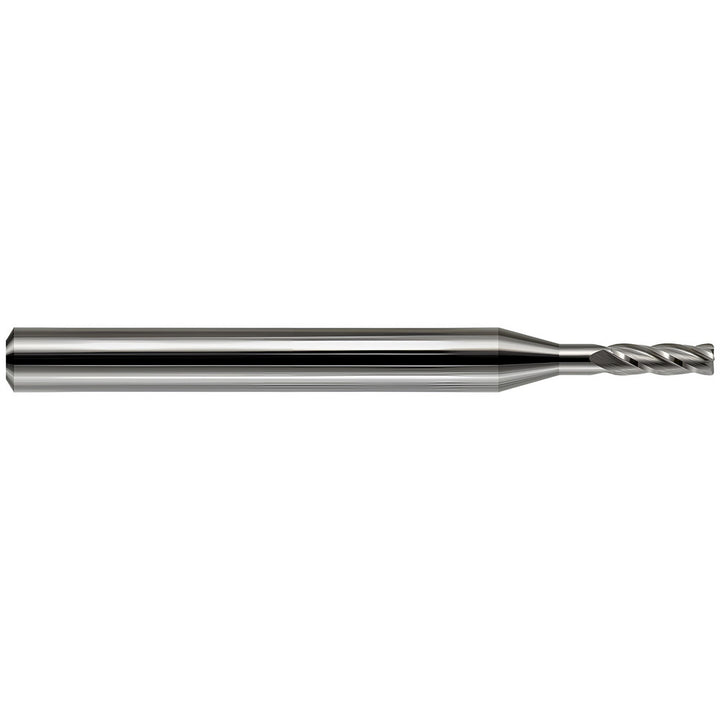

0.0620" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Harvey Tool 876062-C3

MFR# 876062-C3Series Miniature End Mills - Corner Radius - Long Reach; Standard Flute; Miniature End Mills

$69.44List $81.07 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Harvey Tool 876062-C3 is a 0.0620 4-flute Solid Carbide corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, non-iso. 1-1/2 overall length. Series Miniature End Mills - Corner Radius - Long Reach; Standard Flute; Miniature End Mills.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0100

Corner radius tolerance0.0010 to -0.0010 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeHelical

For use withToolholder

Length of cut0.0380

Length typeExtended

Material applicationNon-Ferrous Metal; Cast Iron; Steel; Stainless Steel; Composite

Material removal typeRoughing & Finishing

Mill diameter0.0620

Mill diameter tolerance0.0005 to -0.0005 in

Number of flutes4

Overall length in1-1/2

Overall length tolerance0.0100 to -0.0000 in

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Non-ISO

Reach length in5/16

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
