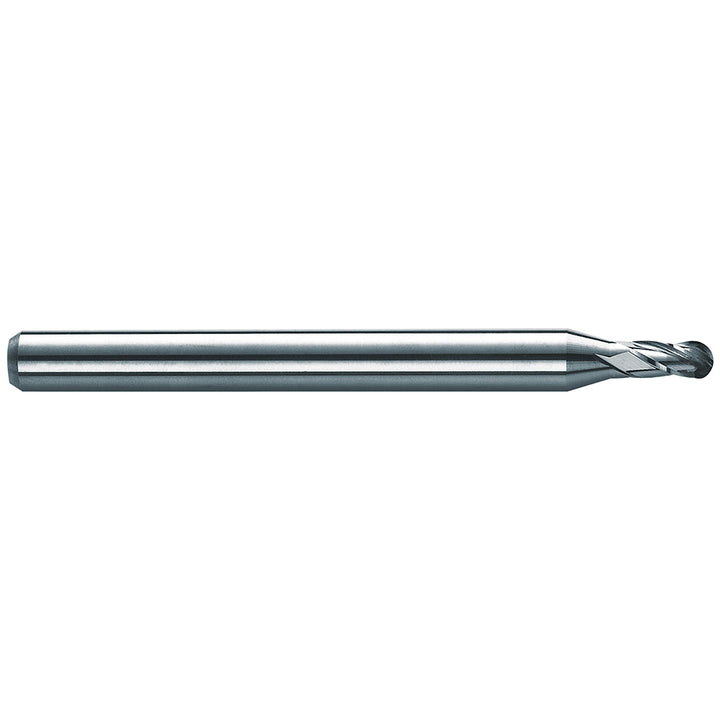

0.0620" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 02760

SGS

0.0620" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 02760

MFR# 02760Series M4BE

$36.28List $46.53 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 02760 is a 0.0620 4-flute Solid Carbide ball end mill with a AlTiN finish for longer tool life. 2-1/2 overall length. Series M4BE.

Specifications

ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length typeStandard
Mill diameter0.0620
Number of flutes4
Overall length in2-1/2
Shank diameter in1/8
Shank diameter toleranceh6
Single or double endSingle
Variable helixNo
Variable indexNo
