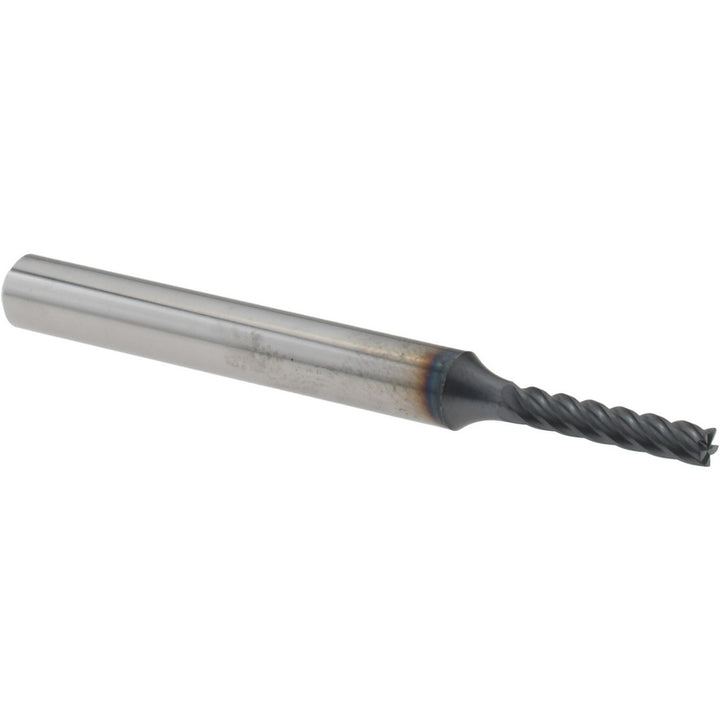

1/8" 5-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 885308-C6

Harvey Tool

1/8" 5-Flute Solid Carbide Square End Mill, AlTiN - Harvey Tool 885308-C6

MFR# 885308-C6

$106.66List $124.52 Save 14%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 885308-C6 is a 1/8 5-flute Solid Carbide square end mill with a AlTiN finish for longer tool life. 5/8 length of cut, 2-1/2 overall length.

Specifications

CentercuttingYes
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Mill diameter in1/8
Number of flutes5
Overall length in2-1/2
Shank diameter in1/4
Variable helixYes
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
