Seco

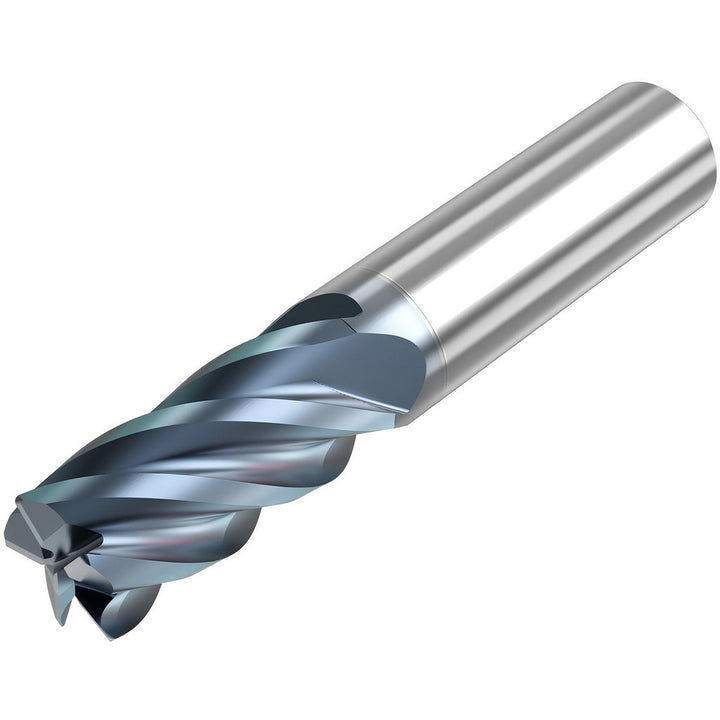

1/8" 5-Flute Solid Carbide Corner Radius End Mill, HTA - Seco 10115935

MFR# 10115935Series STR540

$42.80List $54.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/8

Flutes5

MaterialSolid Carbide

CoatingHTA

Description

The Seco 10115935 is a 1/8 5-flute Solid Carbide corner radius end mill with a HTA finish for longer tool life. 1/2 length of cut, 1-1/2 overall length. Series STR540.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishHTA

Coolant throughNo

Corner radius0.0313

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut in1/2

Length typeLong

Material removal typeRoughing

Mill diameter in1/8

Mill diameter tolerance-0.0020/+0.0000

Number of flutes5

Overall length in1-1/2

PitchVariable

Shank diameter in1/8

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0005

Variable helixYes

Variable indexYes
