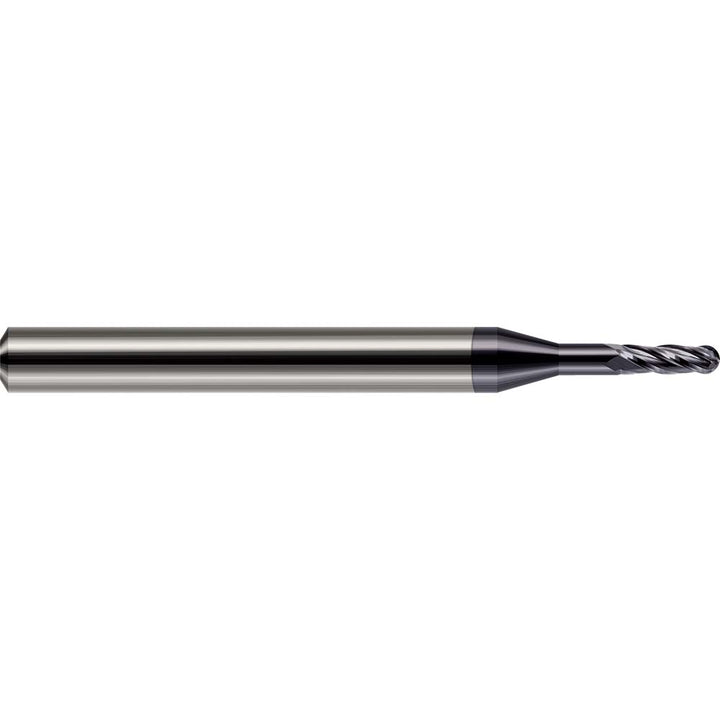

0.0390" 4-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 982839-C3

Harvey Tool

0.0390" 4-Flute Solid Carbide Ball End Mill, AlTiN - Harvey Tool 982839-C3

MFR# 982839-C3Series Miniature End Mills - Ball - Long Reach, Standard Flute, Miniature End Mills

$72.50List $83.16 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Harvey Tool 982839-C3 is a 0.0390 4-flute Solid Carbide (Carbide) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 0.1170 length of cut, 1-1/2 overall length. Series Miniature End Mills - Ball - Long Reach, Standard Flute, Miniature End Mills.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut0.1170
Length typeStandard
Manufacturers catalog number982839-C3
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter0.0390
Mill diameter tolerance+0.0005/-0.0005 in
Neck length0.0860
Nose radius0.0195
Number of flutes4
Overall length in1-1/2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in13/64
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementDecimal Inch
Variable helixNo
Variable indexNo
