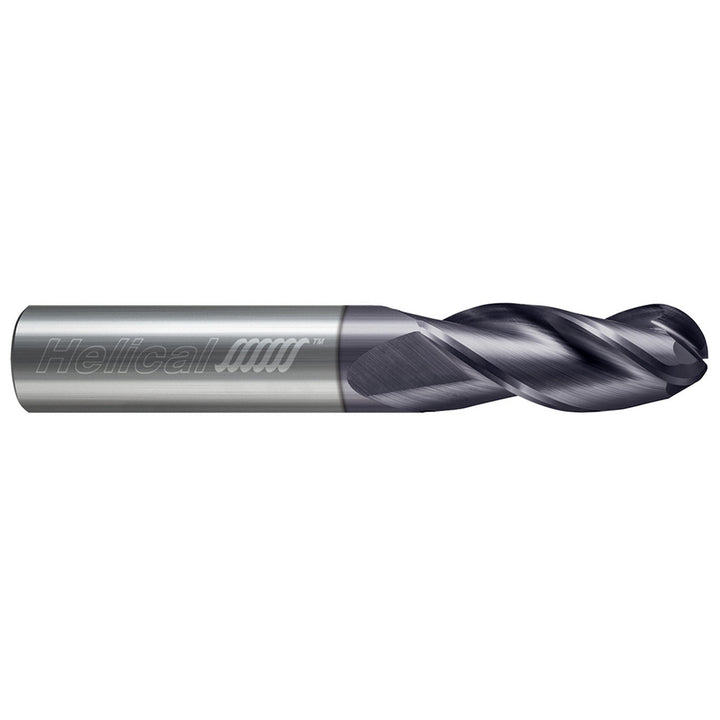

1/2" 3-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 12332

MFR# 12332Series 3 Flute, Ball (Aplus), End Mills for Steels, Tool Steels, & Cast Iron

$116.92List $136.51 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 12332 is a 1/2 3-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron. 1 length of cut, 3 overall length. Series 3 Flute, Ball (Aplus), End Mills for Steels, Tool Steels, & Cast Iron.

Specifications

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in1

Length typeStandard

Manufacturers catalog number12332

Material gradeCarbide

Material removal typeRoughing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.2500

Number of flutes3

Overall length in3

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in1

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexNo
