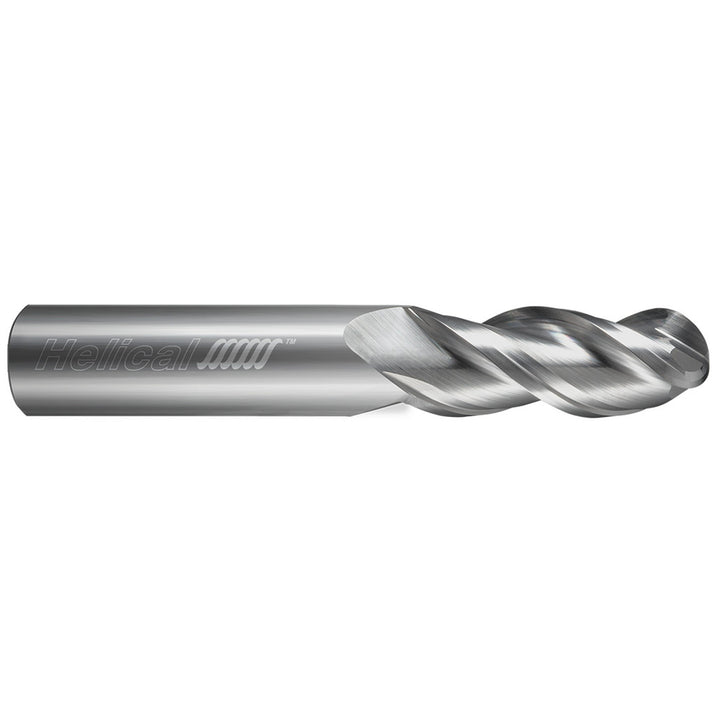

1/4" 3-Flute Solid Carbide Ball End Mill - Helical Solutions 49075

MFR# 49075Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials

$47.11List $55.00 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Helical Solutions 49075 is a 1/4 3-flute Solid Carbide (Carbide) ball end mill. Suited for non-ferrous metal. 3/8 length of cut, 2 overall length. Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Helix styleHigh

Length of cut in3/8

Length typeStub

Manufacturers catalog number49075

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter toleranceh6

Nose radius0.1250

Number of flutes3

Overall length in2

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialNon-Ferrous Metal

Reach length in3/8

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0003

Variable helixNo

Variable indexNo
