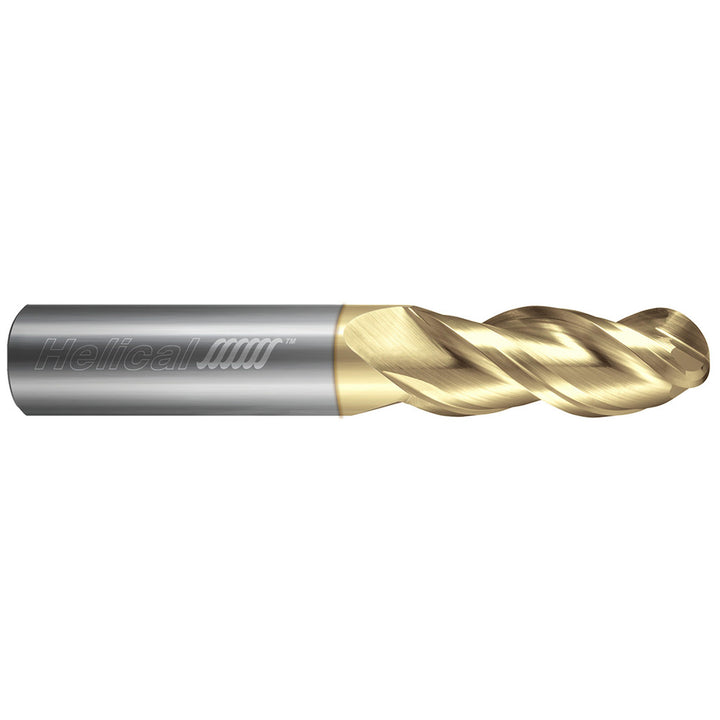

3/8" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 49211

MFR# 49211Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials

$87.16List $101.75 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingZplus

Description

The Helical Solutions 49211 is a 3/8 3-flute Solid Carbide (Carbide) ball end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 1 length of cut, 2-1/2 overall length. Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo

Coating finishZplus

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Helix styleHigh

Length of cut in1

Length typeStandard

Manufacturers catalog number49211

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter toleranceh6

Nose radius0.1875

Number of flutes3

Overall length in2-1/2

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialNon-Ferrous Metal

Reach length in1

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0003

Variable helixNo

Variable indexNo
