Helical Solutions

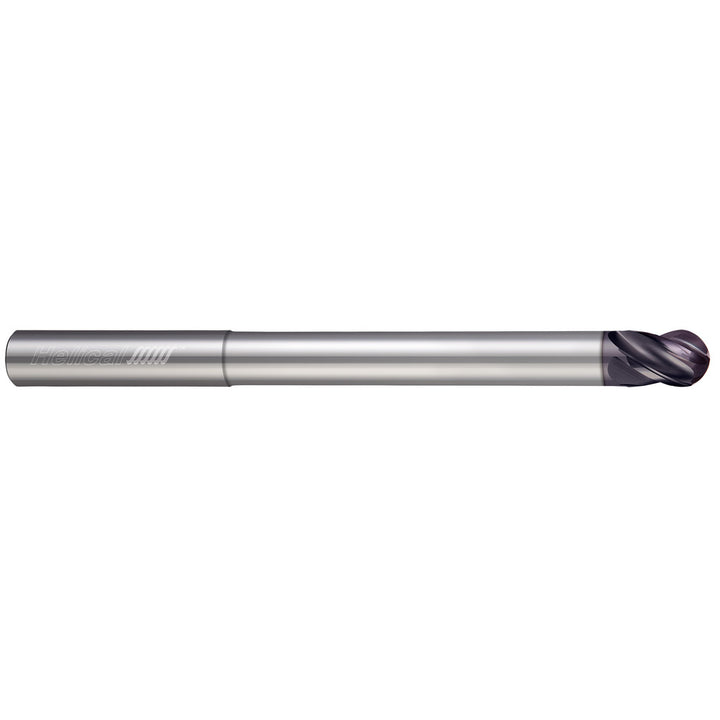

3/4" 4-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 57362

MFR# 57362Series 4 Flute, Ball - Variable Pitch, Reduced Neck (Aplus), End Mills for Steels, Tool Steels, & Cast Iron

$316.12List $342.41 Save 7%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 57362 is a 3/4 4-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron. 1 length of cut, 6 overall length. Series 4 Flute, Ball - Variable Pitch, Reduced Neck (Aplus), End Mills for Steels, Tool Steels, & Cast Iron.

Specifications

ChipbreakerNo

Coating finishAPLUS

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Length of cut in1

Length typeStub

Manufacturers catalog number57362

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in3/4

Mill diameter tolerance+0.0000/-0.0020 in

Neck diameter0.7120

Neck length2.3700

Nose radius0.3750

Number of flutes4

Overall length in6

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in3-3/8

Shank diameter in3/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
