Helical Solutions

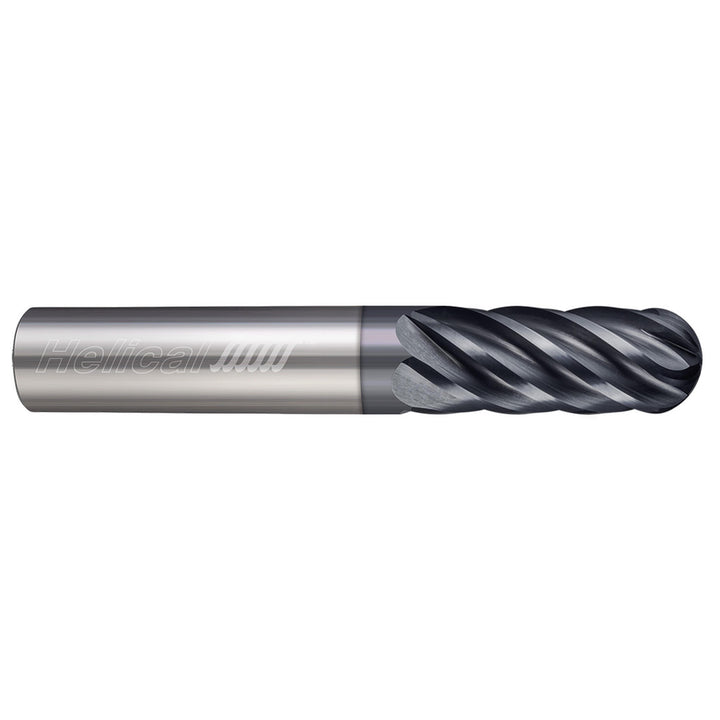

1/2" 6-Flute Solid Carbide Ball End Mill, APLUS - Helical Solutions 59449

MFR# 59449Series HEV-6

$173.74List $202.84 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes6

MaterialSolid Carbide

CoatingAPLUS

Description

The Helical Solutions 59449 is a 1/2 6-flute Solid Carbide (Carbide) ball end mill with a APLUS finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1-5/8 length of cut, 4 overall length. Series HEV-6.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAPLUS

Coating finish familyAPLUS

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Length of cut in1-5/8

Length typeStandard

Manufacturers catalog number59449

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/2

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.2500

Number of flutes6

Overall length in4

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Reach length in1-5/8

Secondary workpiece materialSteel

Shank diameter in1/2

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
