Helical Solutions

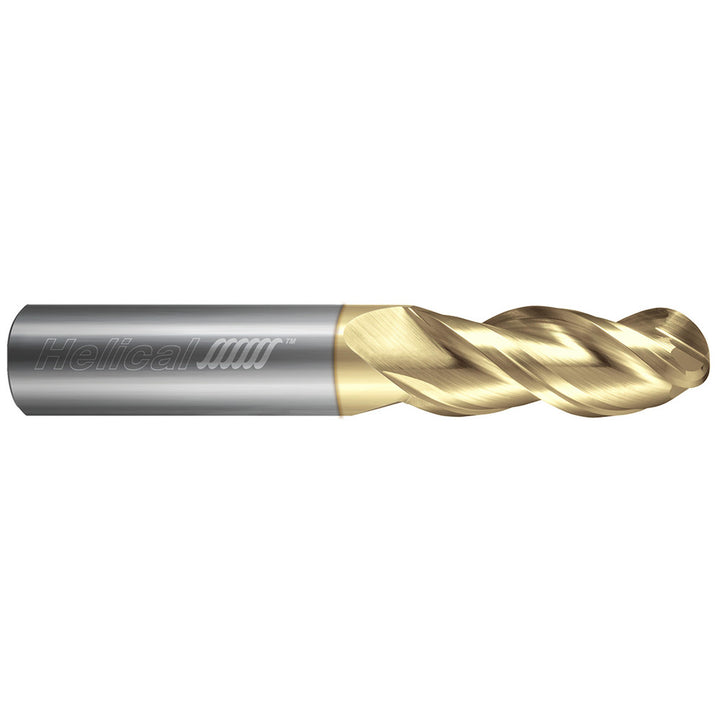

3/8" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 82462

MFR# 82462Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials

$77.07List $89.98 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes3

MaterialSolid Carbide

CoatingZplus

Description

The Helical Solutions 82462 is a 3/8 3-flute Solid Carbide (Carbide) ball end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 3/4 length of cut, 2-1/2 overall length. Series 3 Flute, Ball - 40 Helix, Variable Pitch, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo

Coating finishZplus

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle40

Helix styleHigh

Length of cut in3/4

Length typeStandard

Manufacturers catalog number82462

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in3/8

Mill diameter toleranceh6

Nose radius0.1875

Number of flutes3

Overall length in2-1/2

Overall length tolerance+0.0620/-0.0620 in

Primary workpiece materialNon-Ferrous Metal

Reach length in3/4

Shank diameter in3/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0003

Variable helixNo

Variable indexNo
