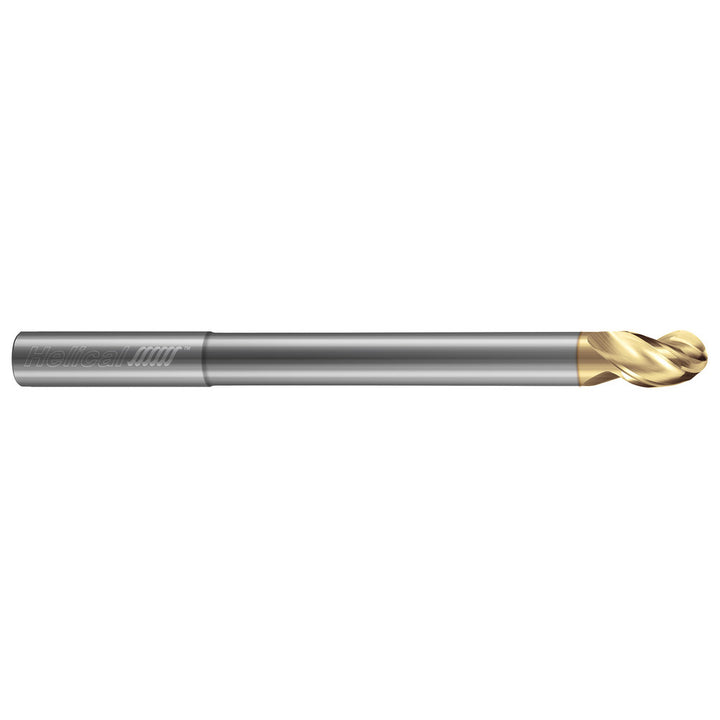

3/16" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 82488

Helical Solutions

3/16" 3-Flute Solid Carbide Ball End Mill, Zplus - Helical Solutions 82488

MFR# 82488Series 3 Flute, Ball - 40 Helix, Variable Pitch, Reduced Neck, End Mills for Aluminum Alloys & Non-Ferrous Materials

$76.70List $88.00 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide
CoatingZplus

Description

The Helical Solutions 82488 is a 3/16 3-flute Solid Carbide (Carbide) ball end mill with a Zplus finish for longer tool life. Suited for non-ferrous metal. 7/32 length of cut, 3 overall length. Series 3 Flute, Ball - 40 Helix, Variable Pitch, Reduced Neck, End Mills for Aluminum Alloys & Non-Ferrous Materials.

Specifications

ChipbreakerNo
Coating finishZplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Helix styleHigh
Length of cut in7/32
Length typeStub
Manufacturers catalog number82488
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in3/16
Mill diameter toleranceh6
Neck diameter0.1780
Neck length1.0920
Nose radius0.0938
Number of flutes3
Overall length in3
Overall length tolerance+0.0620/-0.0620 in
Primary workpiece materialNon-Ferrous Metal
Reach length in1-5/16
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0003
Variable helixNo
Variable indexYes
