Helical Solutions

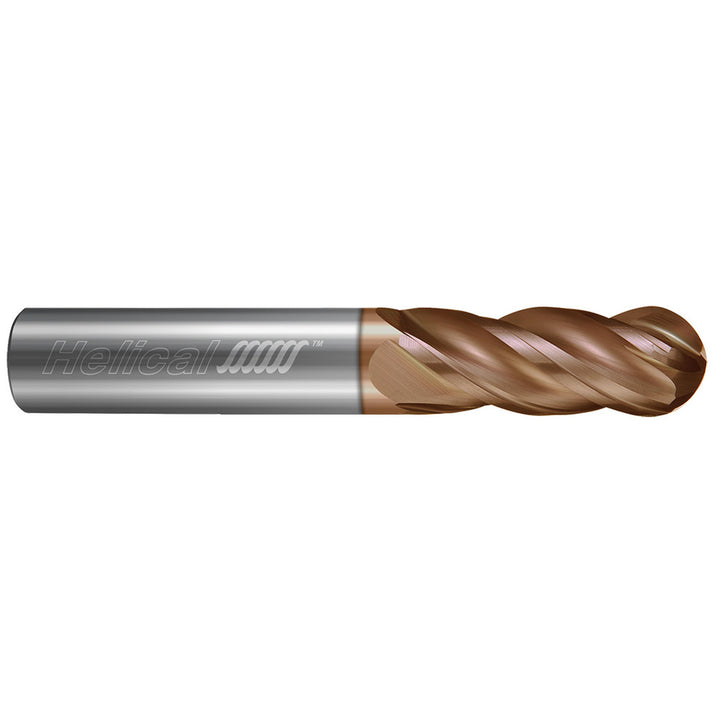

3/16" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83280

MFR# 83280Series HSV-4

$52.30List $61.05 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 83280 is a 3/16 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, high-temp alloy, hardened materials. 5/8 length of cut, 2-1/2 overall length. Series HSV-4.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTplus

Coating finish familyTplus

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle35

Length of cut in5/8

Length typeStandard

Manufacturers catalog number83280

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.0938

Number of flutes4

Overall length in2-1/2

Overall length tolerance+0.0620/-0.06250 in

Primary workpiece materialStainless Steel; High-Temp Alloy; Hardened Materials

Reach length in5/8

Secondary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
