Helical Solutions

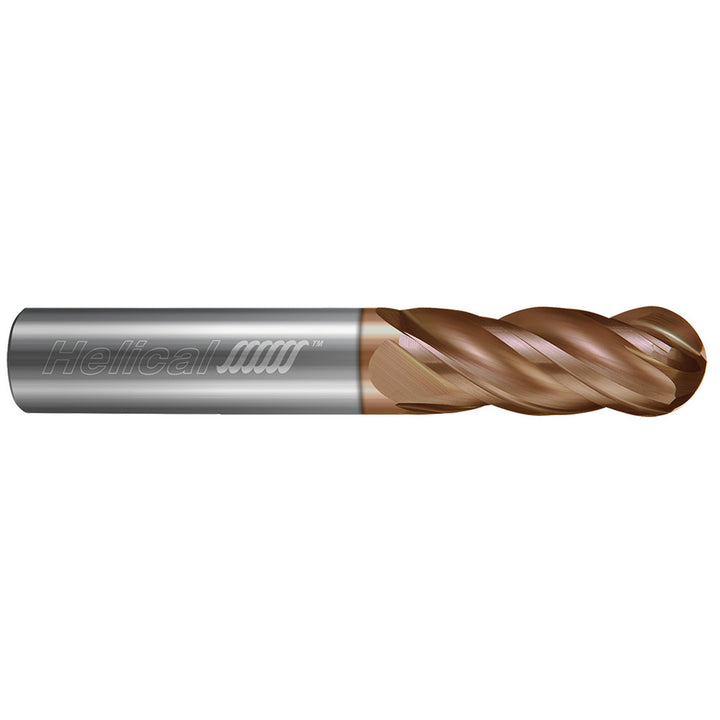

1/4" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83283

MFR# 83283Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys

$64.44List $75.24 Save 14%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialSolid Carbide

CoatingTplus

Description

The Helical Solutions 83283 is a 1/4 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. 1/2 length of cut, 2-1/2 overall length. Series 4 Flute - Ball - Variable Pitch (Tplus), End Mills for Stainless Steels & High Temp Alloys.

Specifications

ChipbreakerNo

Coating finishTplus

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Length of cut in1/2

Length typeStandard

Manufacturers catalog number83283

Material gradeCarbide

Material removal typeRoughing & Finishing

Mill diameter in1/4

Mill diameter tolerance+0.0000/-0.0020 in

Nose radius0.1250

Number of flutes4

Overall length in2-1/2

Overall length tolerance+0.0620/-0.06250 in

Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material

Reach length in1/2

Secondary workpiece materialSteel; Stainless Steel; Cast Iron

Shank diameter in1/4

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Tir maximum0.0005

Variable helixNo

Variable indexYes
