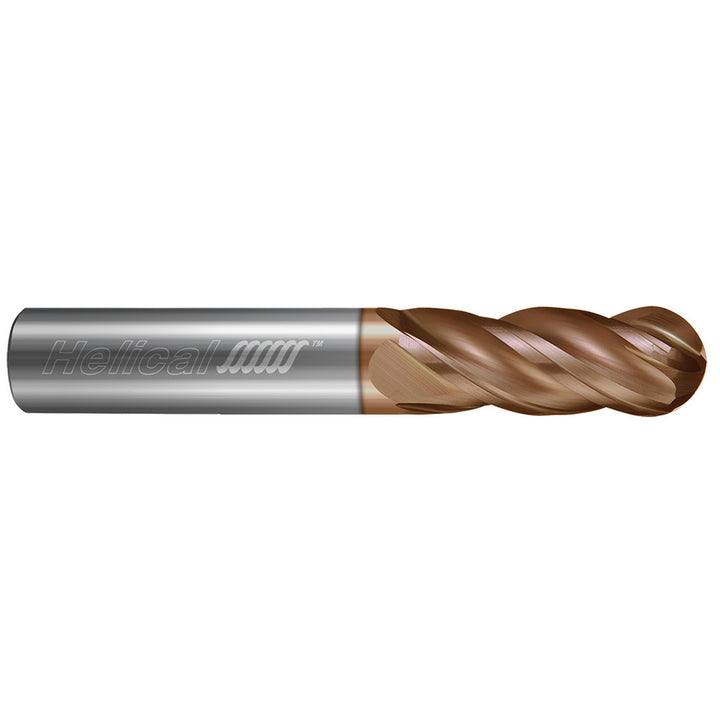

1/2" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83297

Helical Solutions

1/2" 4-Flute Solid Carbide Ball End Mill, Tplus - Helical Solutions 83297

MFR# 83297Series HSV-4

$156.49List $179.52 Save 12%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes4
MaterialSolid Carbide
CoatingTplus

Description

The Helical Solutions 83297 is a 1/2 4-flute Solid Carbide (Carbide) ball end mill with a Tplus finish for longer tool life. Suited for stainless steel, high-temp alloy, hardened materials. 1-1/4 length of cut, 3 overall length. Series HSV-4.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTplus
Coating finish familyTplus
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-1/4
Length typeStandard
Manufacturers catalog number83297
Material gradeCarbide
Material removal typeRoughing & Finishing
Mill diameter in1/2
Mill diameter tolerance+0.0000/-0.0020 in
Nose radius0.2500
Number of flutes4
Overall length in3
Overall length tolerance+0.0620/-0.06250 in
Primary workpiece materialStainless Steel; High-Temp Alloy; Hardened Materials
Reach length in1-1/4
Secondary workpiece materialSteel; Stainless Steel; Cast Iron
Shank diameter in1/2
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexYes
