1/4" 4-Flute Cobalt Ball End Mill, TiCN - Hertel E7020016

Hertel

1/4" 4-Flute Cobalt Ball End Mill, TiCN - Hertel E7020016

MFR# E7020016

$21.27List $27.27 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialCobalt
CoatingTiCN

Description

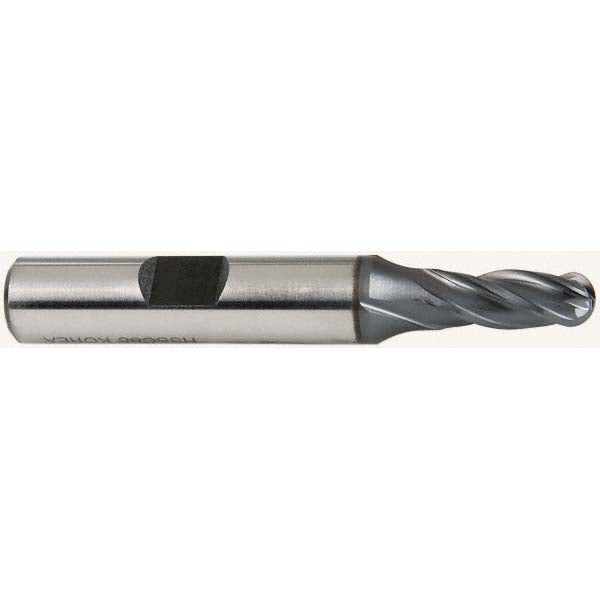

The Hertel E7020016 is a 1/4 4-flute Cobalt (M42) ball end mill with a TiCN finish for longer tool life. 5/8 length of cut, 2-7/16 overall length.

Specifications

Coating finishTiCN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material gradeM42
Mill diameter in1/4
Number of flutes4
Overall length in2-7/16
Shank diameter in3/8
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
