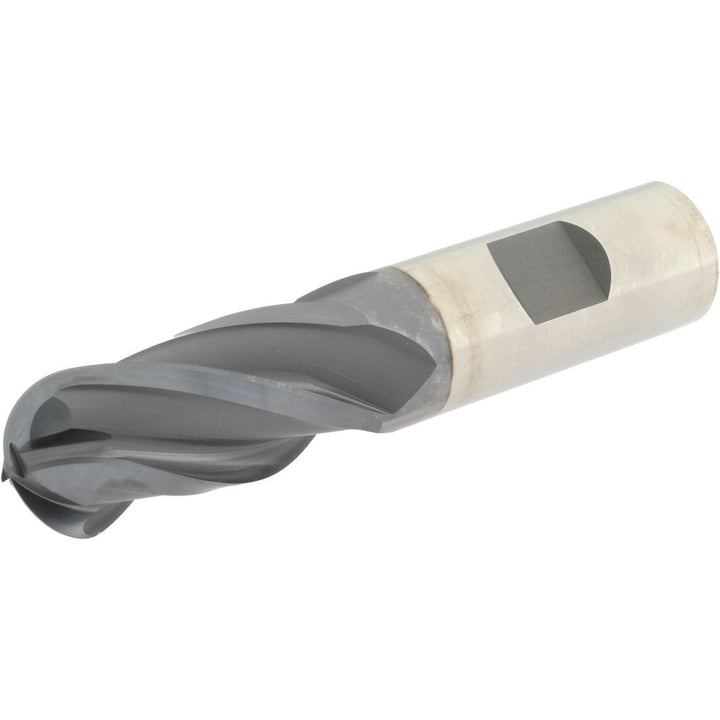

3/4" 4-Flute Cobalt Ball End Mill, TiCN - Hertel E7020048

Hertel

3/4" 4-Flute Cobalt Ball End Mill, TiCN - Hertel E7020048

MFR# E7020048

$102.15List $131.02 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes4
MaterialCobalt
CoatingTiCN

Description

The Hertel E7020048 is a 3/4 4-flute Cobalt (M42) ball end mill with a TiCN finish for longer tool life. 1-5/8 length of cut, 3-7/8 overall length.

Specifications

Coating finishTiCN
Cutting directionRight Hand
End mill materialCobalt
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-5/8
Length typeRegular
Material gradeM42
Mill diameter in3/4
Number of flutes4
Overall length in3-7/8
Shank diameter in3/4
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS3/4" 4-Flute Solid Carbide Ball End Mill, AlTiN - SGS 36546 $273.75 Cleveland3/4" 4-Flute High Speed Steel Ball End Mill, TiCN - Cleveland C33340 $255.82 Cleveland3/4" 4-Flute High Speed Steel Ball End Mill - Cleveland C41364 $203.71 Hertel3/4" 4-Flute Cobalt Ball End Mill - Hertel E2021048 $99.17
