Iscar

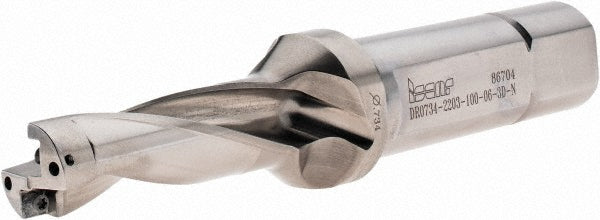

Indexable Drilling - Iscar 3201363
MFR# 3201363Series DR-3D-N
$570.88List $589.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3201363 indexable drilling. Series DR-3D-N.
Specifications
Body length3.0700
Collar diameter1.2600
Compatible drill styleDR
Compatible insert size code060304
Compatible insert styleSOMX
Coolant entry style code1-Axial Concentric Entry
Coolant hole thread size"1/4-18 NPT"
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio3xD
Flute length2.2000
Insert compatibilitySOMX060304
Insert lock screwSR 34-508/L
Insert size0.2441
Maximum drill depth2.2000
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter in47/64
Modular connection size1 in
Neck diameter in1.2600
Number of drill inserts2
Overall length6.0700
Shank diameter in1
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
