Iscar

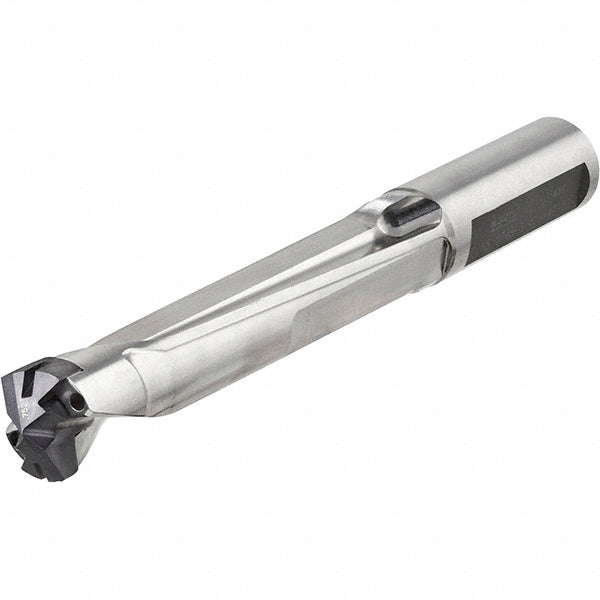

Indexable Drilling - Iscar 3203064
MFR# 3203064Series UniSumoCham
$316.19List $326.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3203064 indexable drilling. Series UniSumoCham.
Specifications
Body length3.3110in
Compatible insert styleFCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M
Coolant throughYes
Drill depth by diameter ratio5xD
Insert seat size13
Maximum drill depth2.6575
Maximum drill depth range2.5000 to 3.5000
Maximum drill diameter0.5472
Minimum drill diameter0.5315
Overall length5.0039in
Shank diameter0.5510
Shank length1.6929in
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleDCNS
Tool applicationHolemaking
