Iscar

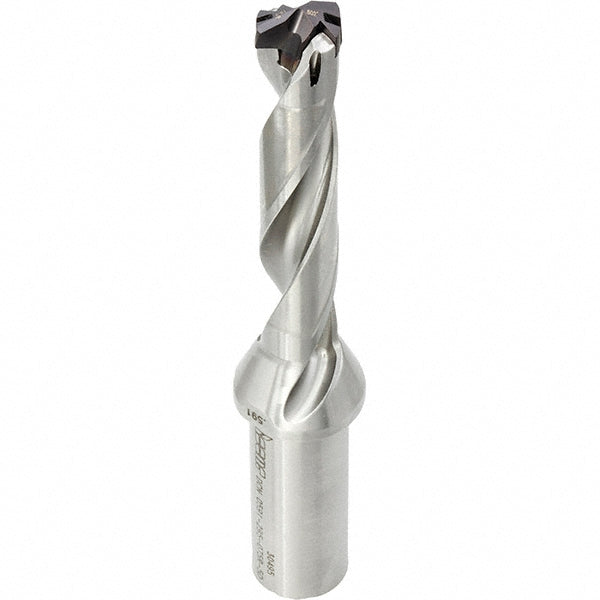

Indexable Drilling - Iscar 3260202
MFR# 3260202Series SumoCham
$212.47List $219.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3260202 indexable drilling. Series SumoCham.
Specifications
Body length1.1500in
Compatible insert styleFCP; HCP-IQ; ICK; ICK-2M; ICM; ICP; iCP-2M
Coolant throughYes
Maximum drill depth0.5600
Maximum drill depth range0.0000 to 1.5000
Maximum drill diameter0.3900
Minimum drill diameter0.3740
Overall length2.9200in
Shank diameter in1/2in
Shank length1.7700in
Shank typeStraight-Cylindrical
StandardsISO 13399
Toolholder styleDCN R
Tool applicationHolemaking
