Iscar

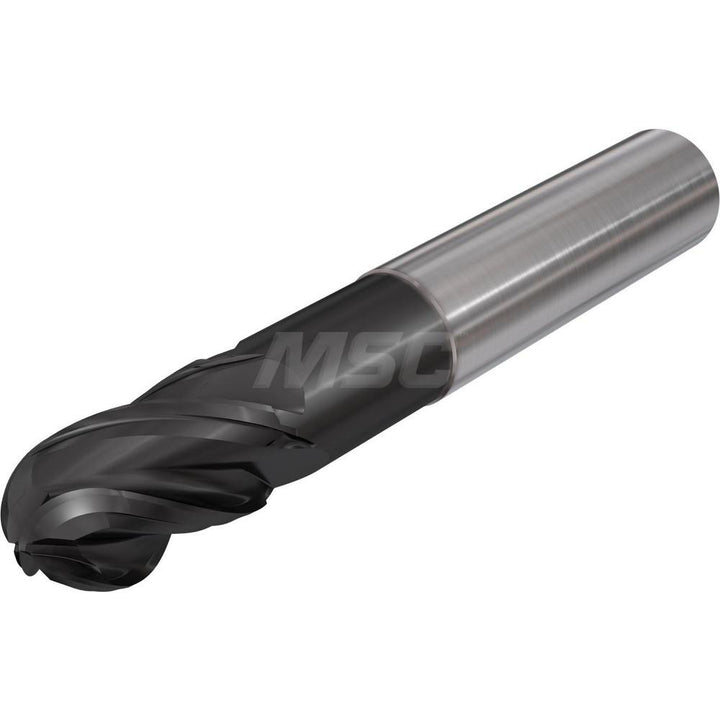

1/4" 3-Flute Solid Carbide Ball End Mill, DLC - Iscar 3399306

MFR# 3399306Cat# EBAI-B3 .25-.375C-2ECSeries Flash Solid

$31.90List $38.25 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes3

MaterialSolid Carbide

CoatingDLC

Description

The Iscar 3399306 is a 1/4 3-flute Solid Carbide ball end mill with a DLC finish for longer tool life. Suited for aluminum & non-ferrous. 3/8 length of cut, 2 overall length. Series Flash Solid.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishDLC

Coating finish familyDLC

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix angle45

Length of cut in3/8

Manufacturers catalog numberEBAI-B3 .25-.375C-2EC

Mill diameter in1/4

Number of flutes3

Overall length in2

Primary workpiece materialAluminum & Non-Ferrous

Reach length in3/8

Shank diameter in1/4

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
