Iscar

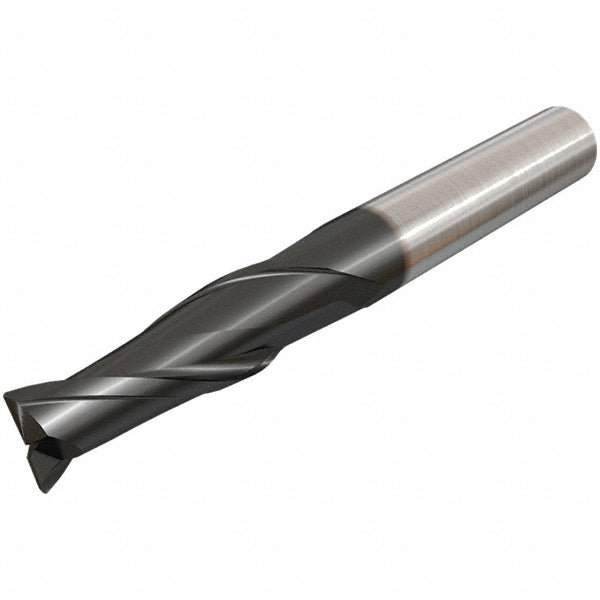

5/16" 2-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5620495

MFR# 5620495Cat# ECCI-A-2 313-813-C313Series ECCI-A-2

$64.88List $83.10 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/16

Flutes2

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5620495 is a 5/16 2-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 13/16 length of cut, 2-1/2 overall length. Series ECCI-A-2.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Counter Boring; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length0.0060

Chamfer width0.0060

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Helix styleMedium

Length of cut in13/16

Length typeMedium

Manufacturers catalog numberECCI-A-2 313-813-C313

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter in5/16

Number of flutes2

Overall length in2-1/2

PitchCoarse

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length0.8130

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in5/16

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
