Iscar

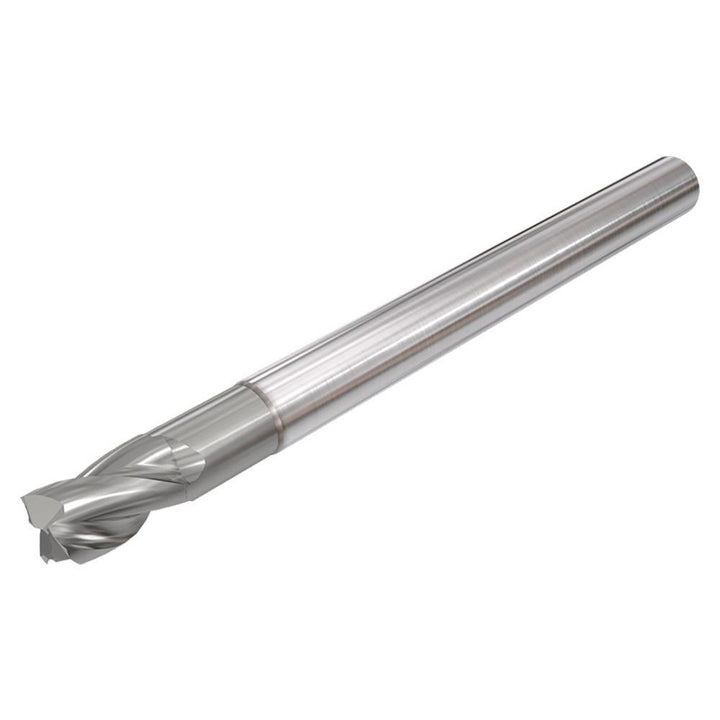

1/4" 3-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5620943
MFR# 5620943Cat# ECSI-E-3 250-313-C250Series ECSI-E-3
$35.29List $45.20
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingAlTiN
Description
The Iscar 5620943 is a 1/4 3-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1/3 length of cut, 2-1/2 overall length. Series ECSI-E-3.
Specifications
Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing
CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeHelical
Helix angle38
Helix styleMedium
Length of cut in1/3
Length typeShort
Manufacturers catalog numberECSI-E-3 250-313-C250
Material gradeIC900
Material removal typeRoughing & Finishing
Mill diameter in1/4
Neck diameter0.2400
Number of flutes3
Overall length in2-1/2
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in5/8
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in1/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
