Iscar

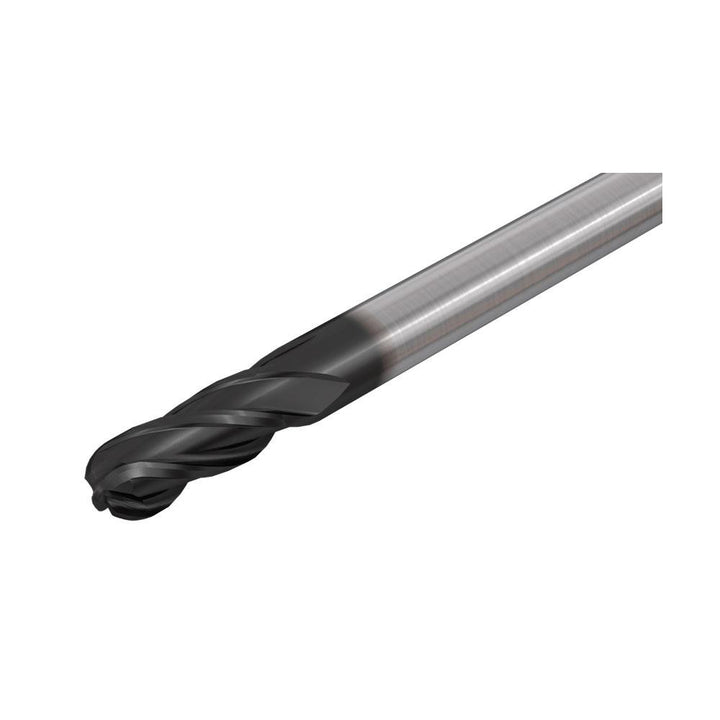

3/4" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5621055

MFR# 5621055Series EBLI-A-4

$473.65List $606.60 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Iscar 5621055 is a 3/4 4-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. 1-1/2 length of cut, 5 overall length. Series EBLI-A-4.

Specifications

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Helix styleMedium

Length of cut in1-1/2

Length typeLong

Material gradeSubmicron

Mill diameter in3/4

Number of flutes4

Overall length in5

Shank diameter in3/4

Single or double endSingle

Variable helixNo

Variable indexNo
