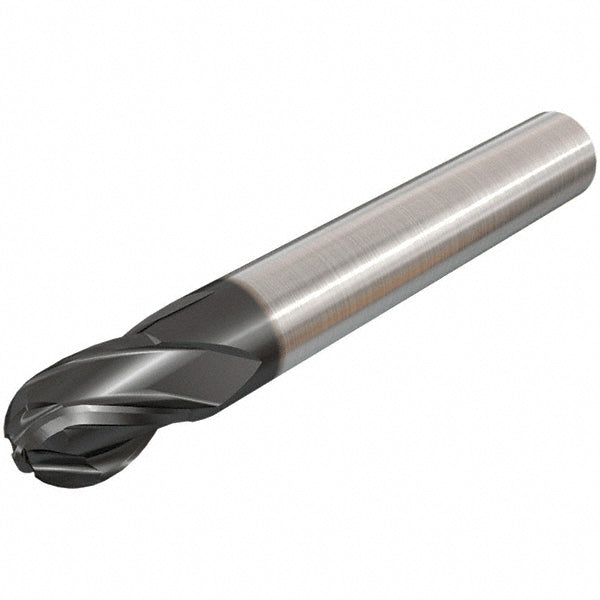

0.0787" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5621057

Iscar

0.0787" 4-Flute Solid Carbide Ball End Mill, TiAlN - Iscar 5621057

MFR# 5621057Series EB-A-4

$51.17List $64.40 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5621057 is a 0.0787 4-flute Solid Carbide (Submicron) ball end mill with a TiAlN finish for longer tool life. Series EB-A-4.

Specifications

ChipbreakerNo
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut (mm)3.00
Length typeStub
Material gradeSubmicron
Mill diameter0.0787
Mill diameter tolerance-0.014 to 0.028 mm
Number of flutes4
Overall length (mm)38.00
Shank diameter (mm)3.00
Shank diameter tolerance0.000 to -0.008 mm
Single or double endSingle
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
