Iscar

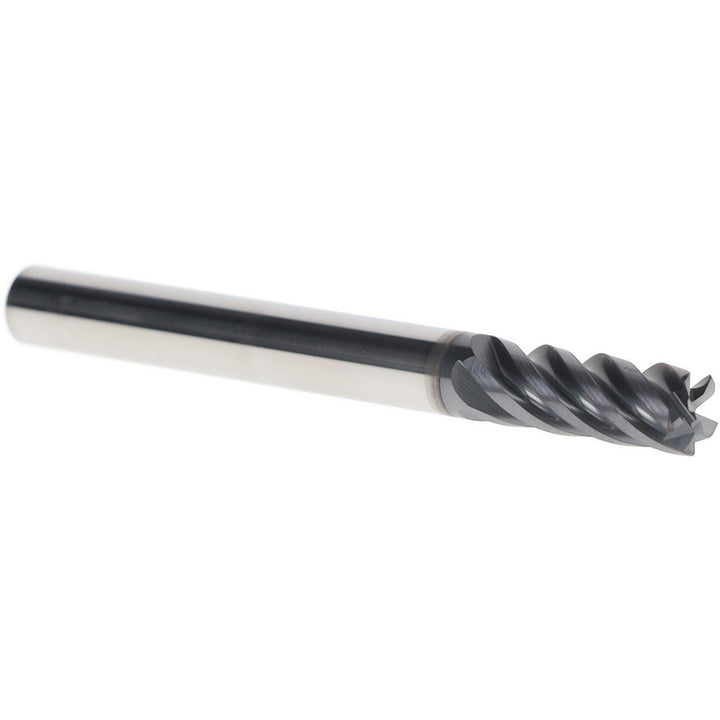

1/4" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5622525

MFR# 5622525Cat# ECI-E5L250-625C250CFSeries ECI-E5-CF

$64.50List $82.60 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5622525 is a 1/4 5-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 2-1/2 overall length. Series ECI-E5-CF.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation

CentercuttingNo

Chamfer angle45

Chamfer length0.0800

Chamfer width0.0080

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeVariable

Helix styleMedium

Length of cut0.6300

Manufacturers catalog numberECI-E5L250-625C250CF

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter in1/4

Neck diameter0.0080

Number of flutes5

Overall length in2-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length0.6300

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in1/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
