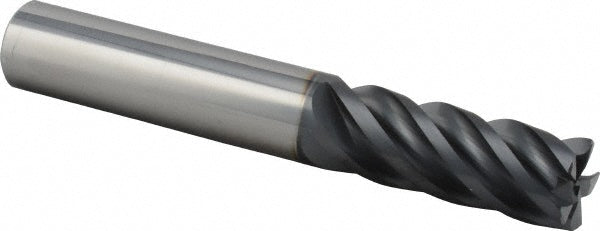

3/4" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5622533

Iscar

3/4" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5622533

MFR# 5622533Cat# ECI-E5L750-1.87C75CFSeries ECI-E5-CF

$489.98List $617.50 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5622533 is a 3/4 5-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 5 overall length. Series ECI-E5-CF.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation
CentercuttingNo
Chamfer angle45
Chamfer length0.0200
Chamfer width0.0200
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeVariable
Helix styleMedium
Length of cut1.8700
Length typeMedium
Manufacturers catalog numberECI-E5L750-1.87C75CF
Material gradeIC900
Material removal typeRoughing & Finishing
Mill diameter in3/4
Neck diameter0.0020
Number of flutes5
Overall length in5
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in1-7/8
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
