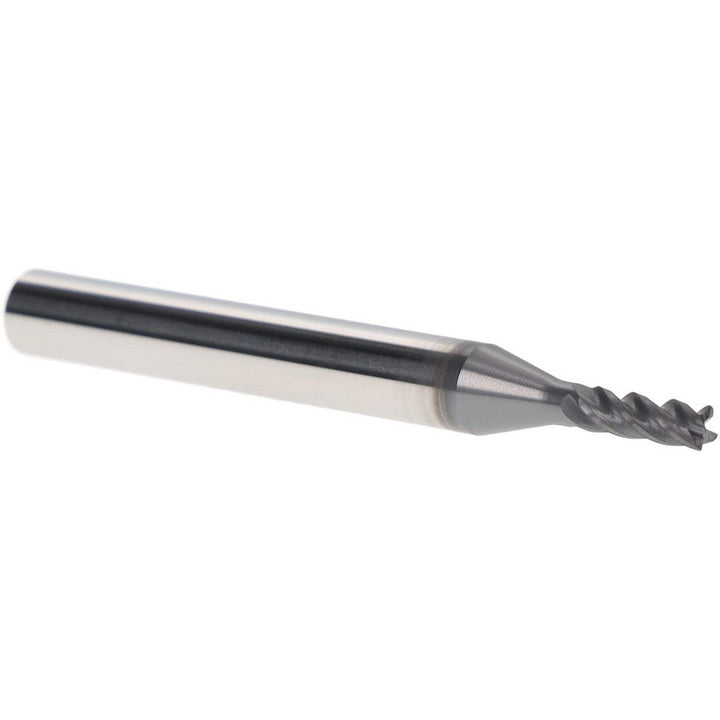

0.1181" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5622639

MFR# 5622639Cat# EC-E4L 03-8/11C06CF57Series EC-E4L-CF

$68.01List $87.10 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5622639 is a 0.1181 4-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. Series EC-E4L-CF.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingNo

Chamfer angle45

Chamfer length (mm)0.10

Chamfer width0.0039

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix angle38

Helix styleMedium

Length of cut0.3150

Length typeLong

Manufacturers catalog numberEC-E4L 03-8/11C06CF57

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter0.1181

Mill diameter tolerance-0.020 to 0.038

Number of flutes4

Overall length (mm)57.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length (mm)11.00

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter (mm)6.00

Shank diameter tolerance0.000 to -0.009 mm

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
