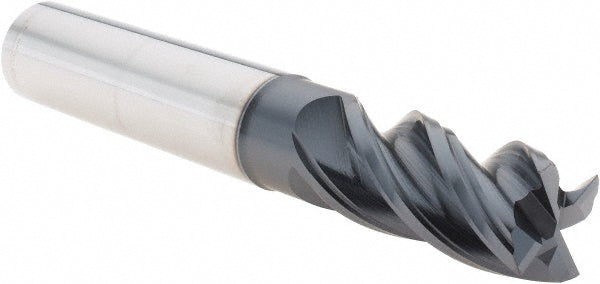

3/4" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5623203

MFR# 5623203Cat# ECI-E4 750-1.5/2.25C75CFSSeries ECI-E4-CF

$393.67List $504.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Iscar 5623203 is a 3/4 4-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1-1/2 length of cut, 5 overall length. Series ECI-E4-CF.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingNo

Chamfer angle45

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachYes

Flute directionRight Hand

Flute typeHelical

Helix styleMedium

Length of cut in1-1/2

Length typeExtended

Manufacturers catalog numberECI-E4 750-1.5/2.25C75CFS

Material gradeIC900

Material removal typeRoughing & Finishing

Mill diameter in3/4

Number of flutes4

Overall length in5

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Reach length in2-1/4

Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material

Shank diameter in3/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
