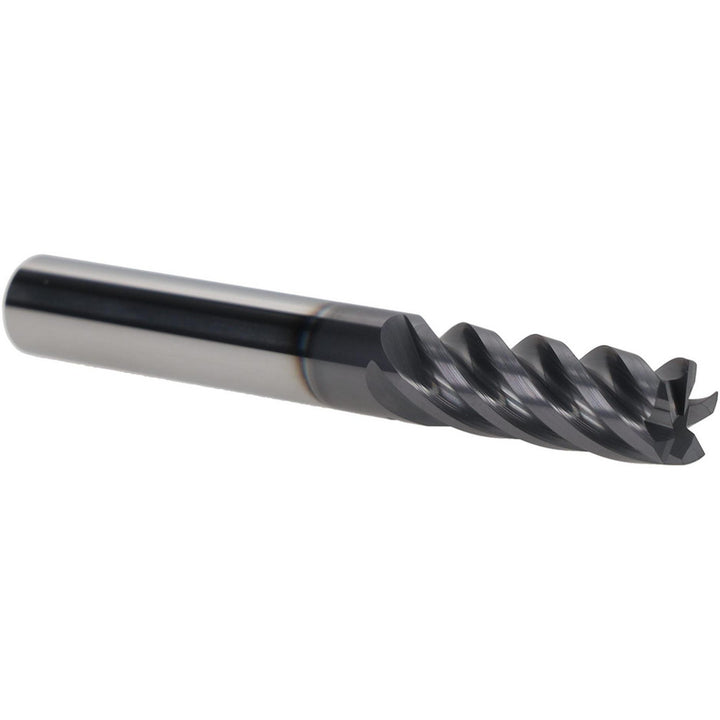

3/8" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5623207

Iscar

3/8" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Iscar 5623207

MFR# 5623207Cat# ECI-E5 375-937C37CFSSeries ECI-E5-CF

$123.89List $155.90 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/8
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Iscar 5623207 is a 3/8 5-flute Solid Carbide (IC900) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron. 3 overall length. Series ECI-E5-CF.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation
CentercuttingNo
Chamfer angle45
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeVariable
Helix angle38
Helix styleMedium
Length of cut0.9370
Length typeMedium
Manufacturers catalog numberECI-E5 375-937C37CFS
Material gradeIC900
Material removal typeRoughing & Finishing
Mill diameter in3/8
Number of flutes5
Overall length in3
PitchClose
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Reach length in1
Secondary workpiece materialNon-Ferrous Metal; Superalloys & Titanium; Hard Material
Shank diameter in3/8
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexYes
