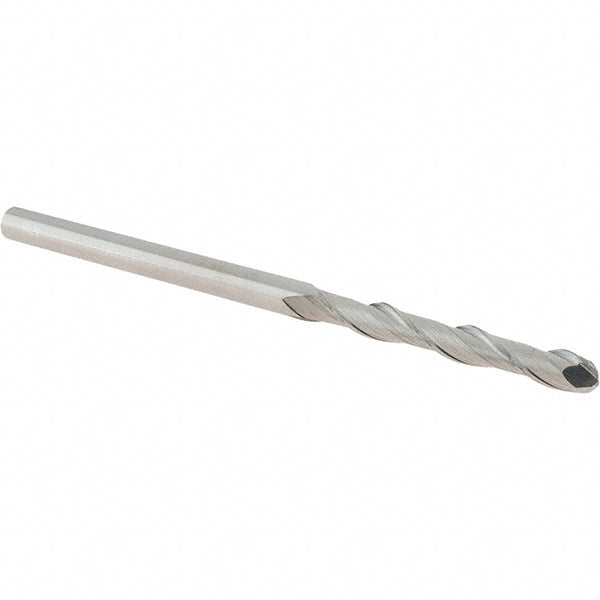

0.1969" 2-Flute Solid Carbide Ball End Mill - Iscar 5650784

Iscar

0.1969" 2-Flute Solid Carbide Ball End Mill - Iscar 5650784

MFR# 5650784Series EB-A2

$64.50List $82.60 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
MaterialSolid Carbide
CoatingUncoated

Description

The Iscar 5650784 is a 0.1969 2-flute Solid Carbide (Submicron) ball end mill. Suited for non-ferrous metal. Series EB-A2.

Specifications

ChipbreakerNo
Coating finishUncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Helix styleMedium
Length of cut (mm)40.00
Length typeExtra Long
Material gradeSubmicron
Mill diameter0.1969
Mill diameter tolerance-0.020 to 0.038 mm
Number of flutes2
Overall length (mm)100.00
Primary workpiece materialNon-Ferrous Metal
Shank diameter (mm)5.00
Shank diameter tolerance0.000 to -0.008 mm
Single or double endSingle
Variable helixNo
Variable indexNo
