Kennametal

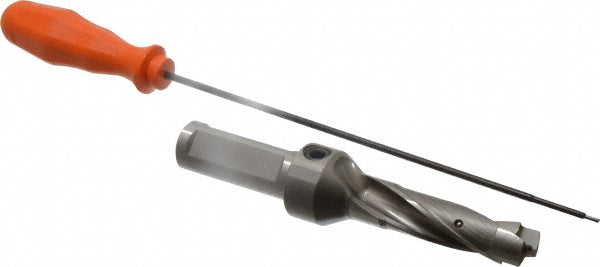

Indexable Drilling - Kennametal 1505111
MFR# 1505111Series KSEM
$455.46List $497.61
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1505111 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM0688
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.9598
Insert seat size1
Maximum drill depth2.1300
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7071
Minimum drill diameter0.6874
Overall length5.75
Shank diameter (mm)19.05
Shank end coolant hole thread size in1/8-27
Shank length2.0000
Shank typeWeldon Flat
