Kennametal

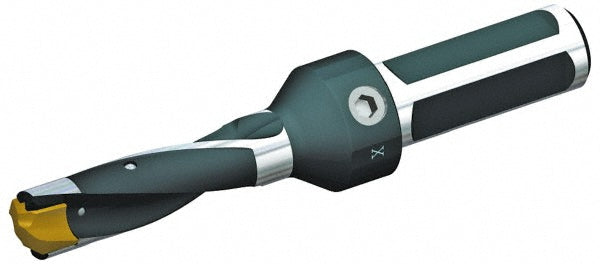

Indexable Drilling - Kennametal 1505127
MFR# 1505127Series KSEM
$667.08List $728.81
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1505127 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1125
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length4.9402
Insert seat size7
Maximum drill depth3.5400
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter1.1449
Minimum drill diameter1.1252
Overall length9
Shank diameter (mm)31.75
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat
