Kennametal

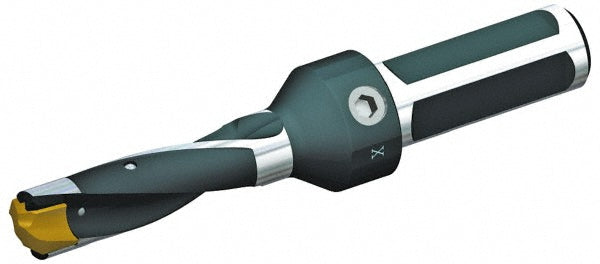

Indexable Drilling - Kennametal 1505128
MFR# 1505128Series KSEM
$778.07List $850.08
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1505128 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1188
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length5.2551
Insert seat size8
Maximum drill depth3.7800
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter1.2071
Minimum drill diameter1.1874
Overall length9.25
Shank diameter (mm)31.75
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat
