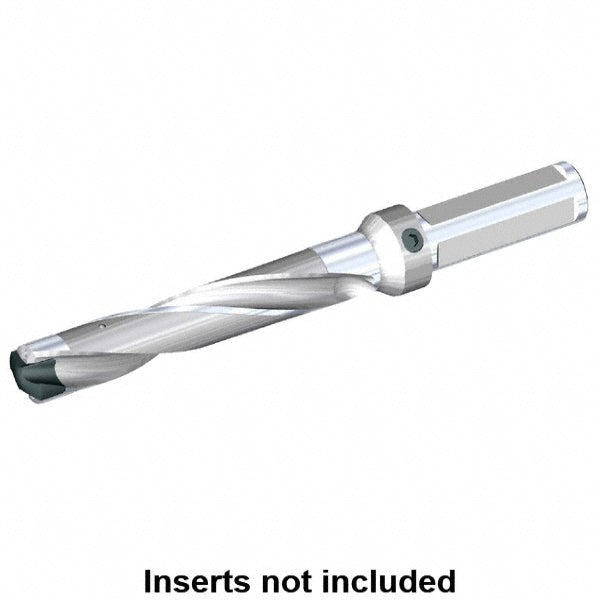

Indexable Drilling - Kennametal 1505196
MFR# 1505196Series KSEM
$875.59List $956.62
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1505196 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1250
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio5xD
Flute length7.7752
Insert seat size8
Maximum drill depth6.3000
Maximum drill depth range6.0000 to 8.0000
Maximum drill diameter1.2598
Minimum drill diameter1.2500
Overall length (mm)298.45
Shank diameter (mm)31.75
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat
