Kennametal

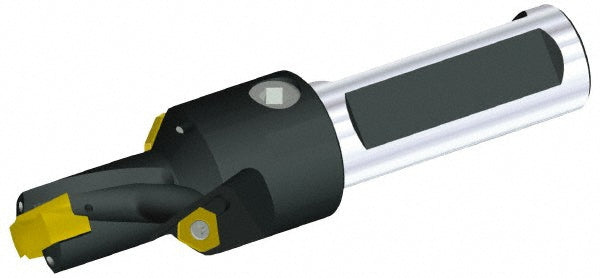

Indexable Drilling - Kennametal 1517181
MFR# 1517181Series KSEM
$769.81List $841.05
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1517181 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1063
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio8xD
Flute length9.6315
Insert seat size6
Maximum drill depth8.5000
Maximum drill depth range8.0000+
Maximum drill diameter1.0823
Minimum drill diameter1.0626
Overall length (mm)342.9
Shank diameter (mm)31.75
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat
