Kennametal

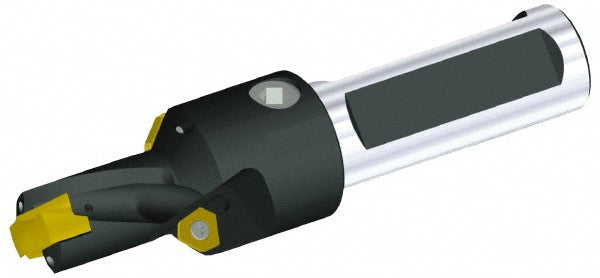

Indexable Drilling - Kennametal 1517235
MFR# 1517235Series KSEM
$737.03List $805.23
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1517235 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM0938
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio8xD
Flute length8.5063
Insert seat size4
Maximum drill depth7.5000
Maximum drill depth range6.0000 to 8.0000
Maximum drill diameter0.9449
Minimum drill diameter0.9374
Overall length (mm)307.98
Shank diameter (mm)25.40
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat
