Kennametal

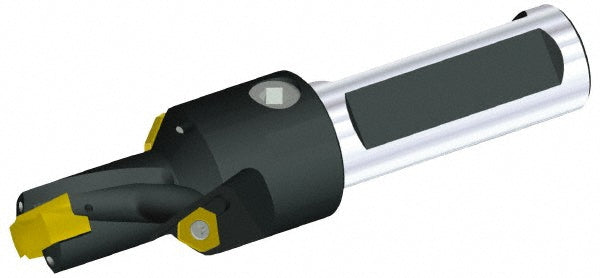

Indexable Drilling - Kennametal 1517240
MFR# 1517240Series KSEM
$945.56List $1,033.06
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1517240 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1250
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio8xD
Flute length11.2563
Insert seat size8
Maximum drill depth10.0000
Maximum drill depth range8.0000+
Maximum drill diameter1.2598
Minimum drill diameter1.2500
Overall length (mm)384.18
Shank diameter (mm)31.75
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat
