Kennametal

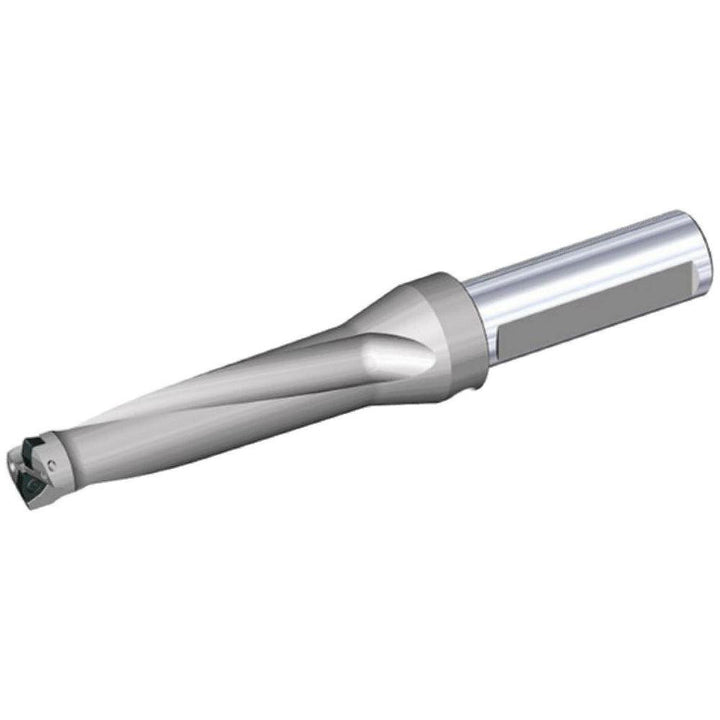

Indexable Drilling - Kennametal 1522101
MFR# 1522101Series DFT
$874.74List $955.69
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1522101 indexable drilling. Series DFT.
Specifications
Body length7.6250
Compatible drill styleDFT
Compatible insert size code06T3..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length5.7500
Insert compatibilityDFT06T3.
Insert lock screwM3.5-0.6x8.3T15
Insert size0.2600x0.1480
Maximum drill depth in5-3/4
Maximum drill depth range5.0000 to 7.0000
Maximum drill diameter1.5630
Number of drill inserts2
Overall length in11-3/8
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
