Kennametal

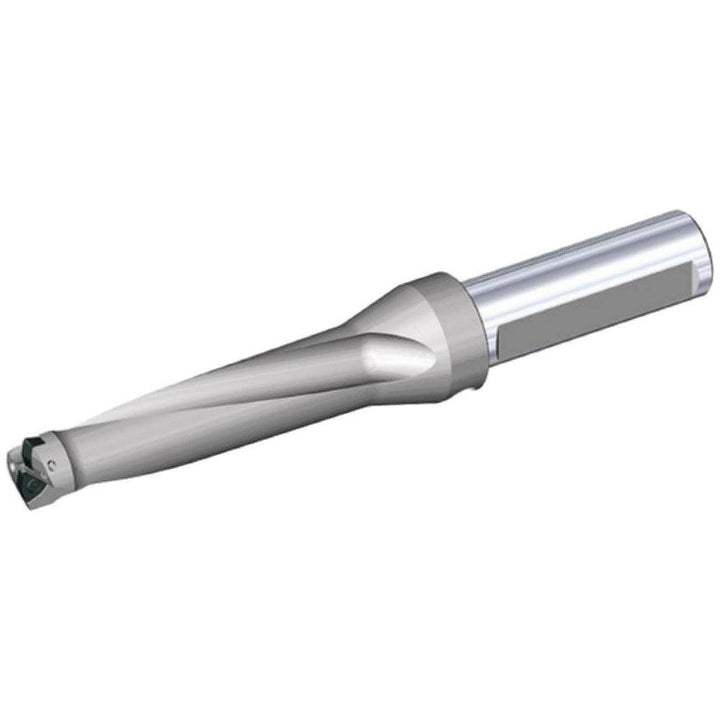

Indexable Drilling - Kennametal 1522107
MFR# 1522107Series DFT
$792.47List $865.80
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1522107 indexable drilling. Series DFT.
Specifications
Body length6.7500
Compatible drill styleDFT
Compatible insert size code05T3..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length5.0000
Insert compatibilityDFT05T3.
Insert lock screwM3-0.5x7.2T9
Insert size0.2080x0.1480
Maximum drill depth in5
Maximum drill depth range5.0000 to 7.0000
Maximum drill diameter1.3250
Number of drill inserts2
Overall length in10-1/2
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
