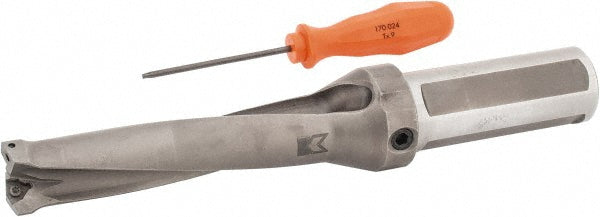

Indexable Drilling - Kennametal 1522126
MFR# 1522126Series DFT
$740.14List $808.63
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1522126 indexable drilling. Series DFT.
Specifications
Body length6.1250
Compatible drill styleDFT
Compatible insert size code05T3..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length4.5000
Insert compatibilityDFT05T3.
Insert lock screwM3-0.5x7.2T9
Insert size0.2080x0.1480
Maximum drill depth in4-1/2
Maximum drill depth range4.0000 to 5.0000
Maximum drill diameter in1-1/4
Number of drill inserts2
Overall length in9-3/8
Shank diameter in1-1/4
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
