Kennametal

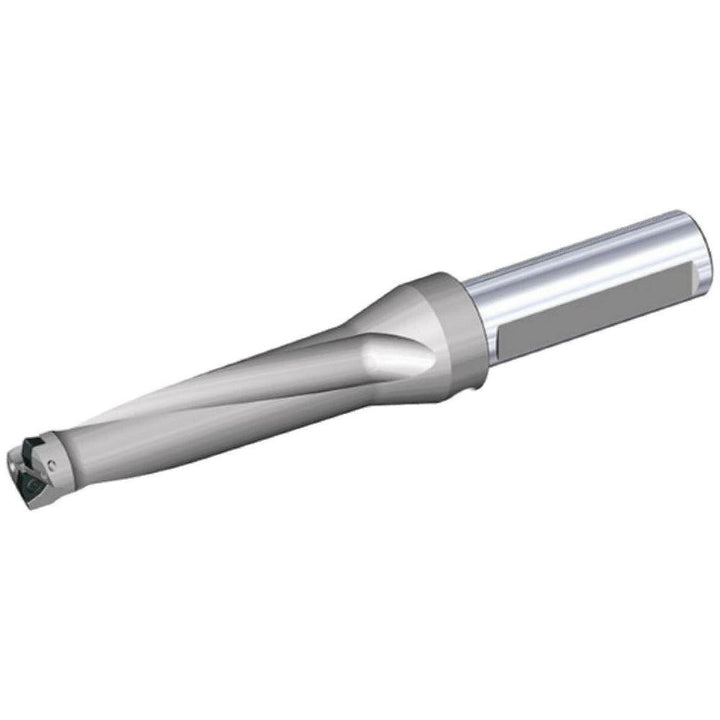

Indexable Drilling - Kennametal 1522248
MFR# 1522248Series DFT
$994.34List $1,086.36
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1522248 indexable drilling. Series DFT.
Specifications
Body length10.1250
Compatible drill styleDFT
Compatible insert size code0905..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio4xD
Flute length8.0000
Insert compatibilityDFT0905.
Insert lock screwM5-0.8x12.5T20
Insert size0.3910x0.2070
Maximum drill depth in8
Maximum drill depth range7.0000 to 10.0000
Maximum drill diameter in2-1/4
Number of drill inserts2
Overall length in13-7/8
Shank diameter in1-1/2
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
