Kennametal

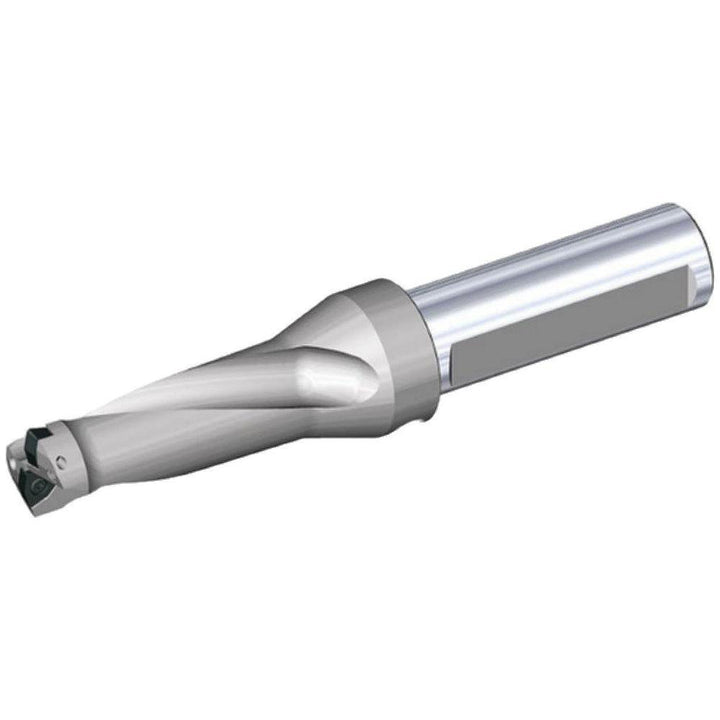

Indexable Drilling - Kennametal 1527699
MFR# 1527699Series DFT
$652.93List $713.34
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1527699 indexable drilling. Series DFT.
Specifications
Body length3.3750
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code0303..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length2.1100
Insert compatibilityDFT0303.
Insert lock screwM2.5-0.45x5.9T8
Insert size0.1560x0.1160
Maximum drill depth2.1100
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter0.9190
Number of drill inserts2
Overall length in6-3/8
Shank diameter in1
Shank end coolant hole thread size in1/4-18
Shank length3.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
