Kennametal

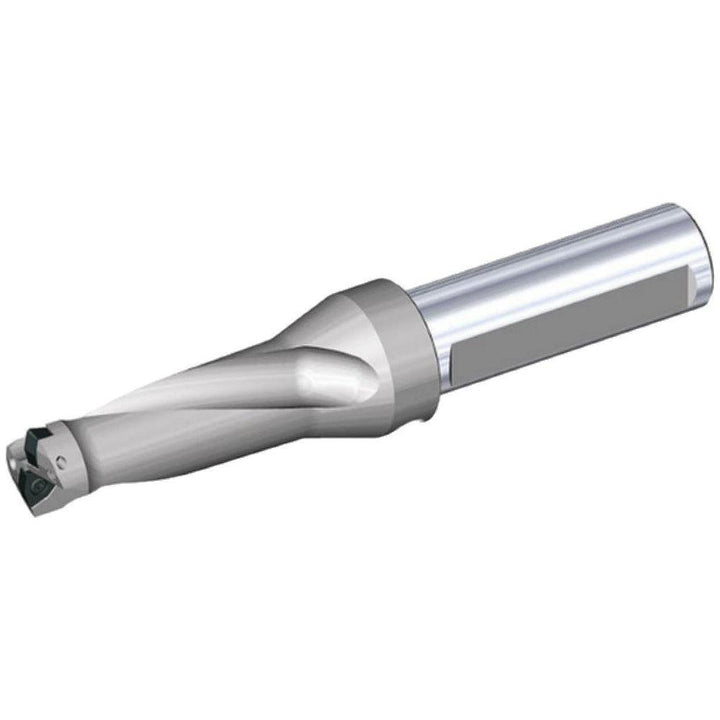

Indexable Drilling - Kennametal 1528341
MFR# 1528341Series DFT
$697.81List $762.38
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1528341 indexable drilling. Series DFT.
Specifications
Body length4.1250
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code05T3..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length2.6500
Insert compatibilityDFT05T3.
Insert lock screwM3-0.5x7.2T9
Insert size0.2080x0.1480
Maximum drill depth2.6500
Maximum drill depth range2.0000 to 3.0000
Maximum drill diameter1.1870
Number of drill inserts2
Overall length in7-3/8
Shank diameter in1-1/4
Shank end coolant hole thread size in1/4-18
Shank length3.2500
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
