Kennametal

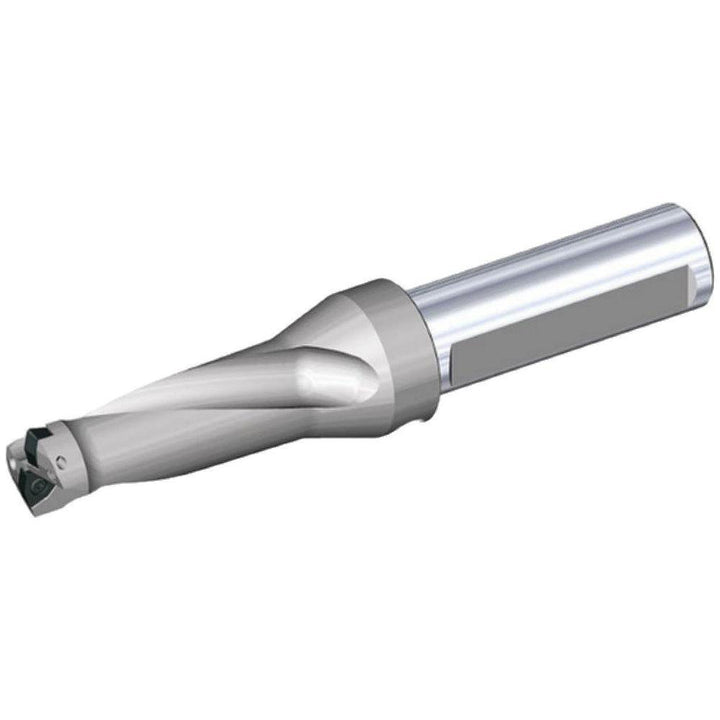

Indexable Drilling - Kennametal 1528424
MFR# 1528424Series DFT
$1,024.25List $1,119.04
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1528424 indexable drilling. Series DFT.
Specifications
Body length9.1250
Body side coolant hole thread size in1/8-27
Compatible drill styleDFT
Compatible insert size code1105..
Compatible insert styleDFT
Coolant entry style code1-Axial Concentric Entry
Coolant throughYes
Cutting directionRight Hand
Drill depth by diameter ratio2.5xD
Flute length6.8750
Insert compatibilityDFT1105.
Insert lock screwM5.5-0.9x9.5T20
Insert size0.4580x0.1941
Maximum drill depth in6-7/8
Maximum drill depth range5.0000 to 7.0000
Maximum drill diameter3.0500
Number of drill inserts2
Overall length in13-1/8
Shank diameter in2
Shank end coolant hole thread size in1/4-18
Shank length4.0000
Shank typeWeldon Flat; Flange
Tool applicationDrilling
Tool materialSteel
Tool performanceGeneral Purpose
