Kennametal

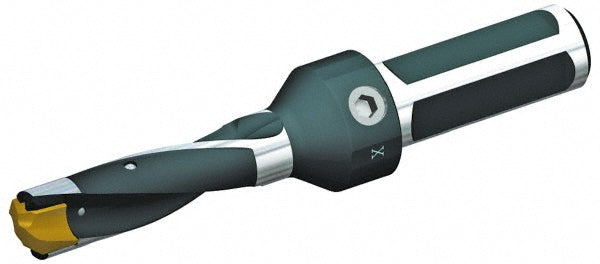

Indexable Drilling - Kennametal 1616100
MFR# 1616100Series KSEM
$816.23List $891.77
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1616100 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1313
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length6.2201
Insert seat size9
Maximum drill depth4.0200
Maximum drill depth range3.5000 to 4.5000
Maximum drill diameter1.3524
Minimum drill diameter1.3130
Overall length10.8752
Shank diameter (mm)38.10
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat
