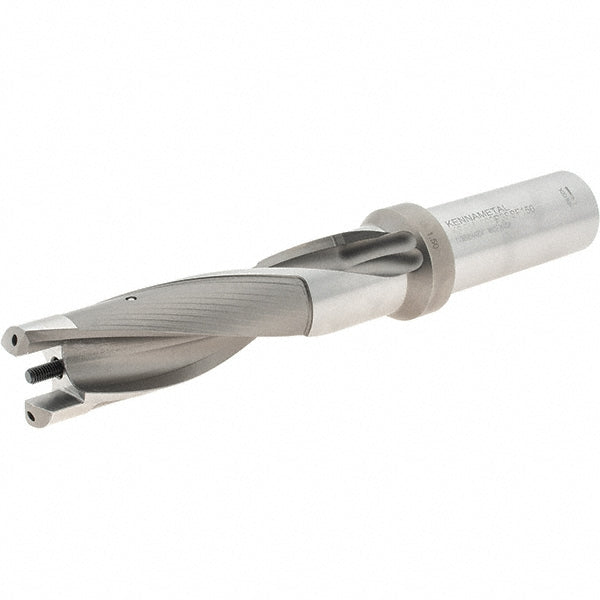

Indexable Drilling - Kennametal 1616135
MFR# 1616135Series KSEM
$856.04List $935.26
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1616135 indexable drilling. Series KSEM.
Specifications
Body side coolant hole thread size in1/8-27
Compatible insert styleKSEM1500
Coolant hole thread typeNPT
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length7.0098
Insert seat size10
Maximum drill depth4.6100
Maximum drill depth range4.5000 to 6.0000
Maximum drill diameter1.5394
Minimum drill diameter1.5000
Overall length (mm)292.1
Shank diameter (mm)38.10
Shank end coolant hole thread size in1/4-18
Shank length3.7500
Shank typeWeldon Flat
