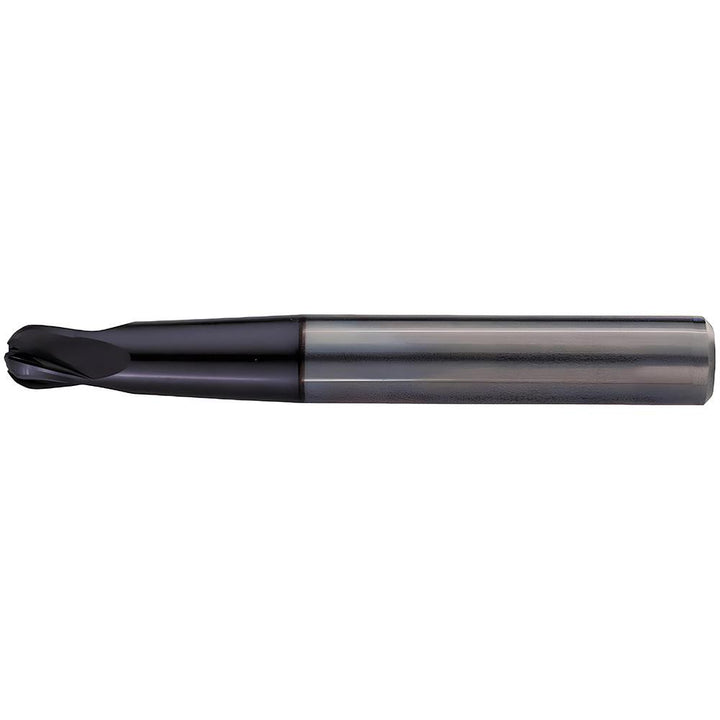

1/4" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 1925141

Kennametal

1/4" 4-Flute Solid Carbide Ball End Mill, TiAlN - Kennametal 1925141

MFR# 1925141Cat# HPBNDM250S4025Series HPBNDM

$220.14List $277.44 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1925141 is a 1/4 4-flute Solid Carbide (C2) ball end mill with a TiAlN; TiN; TiAlN finish for longer tool life. Suited for steel, hardened materials. 1/4 length of cut, 4 overall length. Series HPBNDM.

Specifications

Additional informationCenter Cutting for Plunging & Ramping Operations. Solid Carbide End Mills for Machining of Hard Materials Greater Than 60Hrc.
CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Coating finish familyTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle15
Helix styleLow
Length of cut in1/4
Length typeExtended
Manufacturers catalog numberHPBNDM250S4025
Material gradeC2
Material removal typeFinishing
Mill diameter in1/4
Mill diameter tolerance-0.0000/-0.0020 in
Neck length1.4310
Nose radius0.1250
Number of flutes4
Overall length in4
Primary workpiece materialSteel; Hardened Materials
Reach length1.6810
Shank diameter in3/8
Shank diameter tolerance+0.0000/-0.0035 in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexNo
