Kennametal

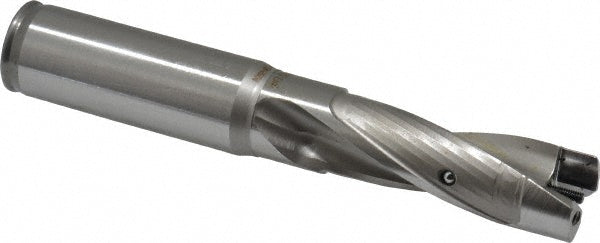

Indexable Drilling - Kennametal 2238534
MFR# 2238534Series KSEM
$433.87List $474.03
Save 8%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 2238534 indexable drilling. Series KSEM.
Specifications
Compatible insert styleKSEM0688
Coolant hole diameter0.1378
Coolant throughYes
Drill depth by diameter ratio3xD
Flute length2.7200
Insert seat size1
Maximum drill depth2.0600
Maximum drill depth range1.5000 to 2.5000
Maximum drill diameter0.7071
Minimum drill diameter0.6874
Overall length4.8800in
Shank diameter (mm)19.05mm
Shank length2.0000in
Shank typeStraight-Cylindrical
